Differences Between Metal (Steel & Aluminum) Raised Floors and Resin OA Raised Floors

There are various materials for raised floors, but each has its own characteristics. In order to select the best raised floor for your office, it is important to know the features and benefits of different materials. This time, AccessFloorStore.Com will explain the difference between resin and metal raised floors, on the basis of their features and applications.

What Is the Difference In the Material (Resin & Metal) of The Raised Floor?

For raised floors, there are various types of materials used by each manufacturer. It is made of resin such as recycled polypropylene, metal such as aluminum die casting and steel, composite of concrete and metal, and composite of wood core and steel. The difference in materials also makes a difference in the load capacity, workability, walking feeling, durability, etc. of the OA access floor. This time, we will introduce the features and applications of steel, aluminum, and resin raised floors.

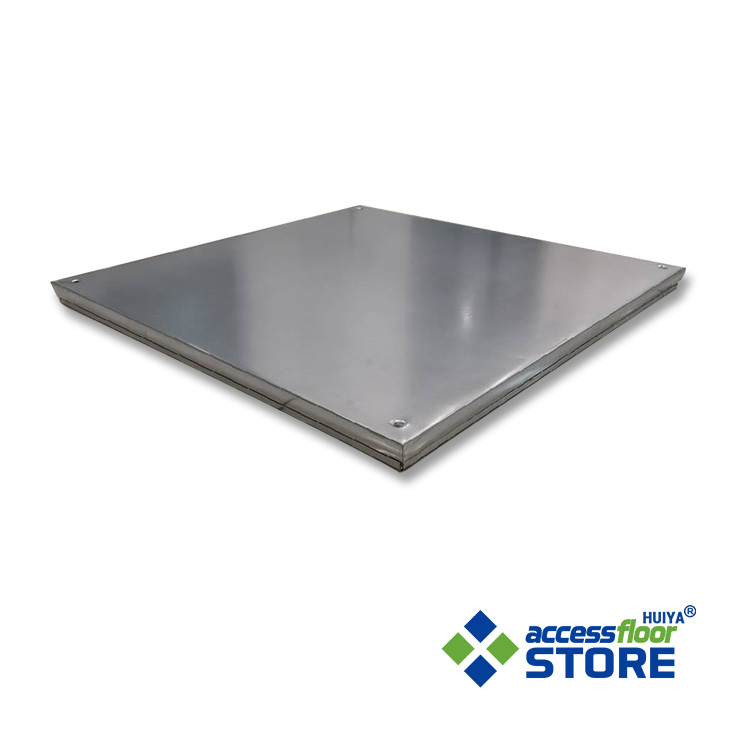

Steel Raised Floor Features & Application

Features of Steel Raised Floor

• Non-land adjustment is possible - Since the support legs have an adjustment function, the level can be adjusted. For this reason, it is characterized by less rattling.

• Large amount of wiring - Since the underfloor space is large, the amount of wiring that can be stored is large and the degree of freedom in wiring is high.

• There are different types of load capacity from office use to computer room use. - The load capacity can be selected according to the place of use because there are 3000N / 5000N for general offices and 6000N for computer rooms.

• Good earthquake resistance - Since the support legs are fixed to the floor slab, seismic resistance is improved.

• Other features are that it can be recycled and that it has a good walking feel.

* Load capacity N (Newton) is a unit that expresses the magnitude of force defined by the International System of Units (SI) and is also a unit of weight. An object with a mass of 1 kg on the surface of the earth weighs about 9.81 Newton. 3000N represents a weight of about 300kg.

Use of Steel Raised Floor

• Steel raised floors can be used in a variety of locations. For example, in the case of a 3000N type raised floor, it can be used in general offices, offices and conference rooms equipped with lightweight equipment.

• The 5000N type is suitable for mounting large computers and communication equipment. It is also widely used in schools, banks, and government offices.

Click here for a list of steel raised floor products

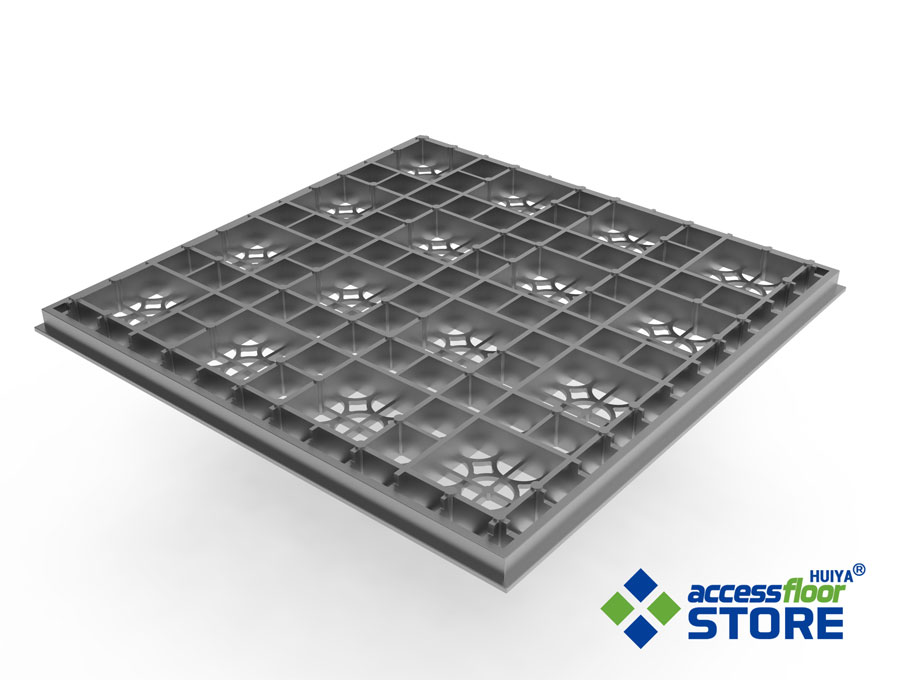

Aluminum Raised Floor Features & Application

Features of Aluminum Raised Floor

• Non-land adjustment is possible - The level can be adjusted in the same way as steel.

• Large space of wiring - As with steel, it has a large storage capacity for wiring and can be freely changed in the space under the floor.

• Compatible with heavy plates - Since aluminum has high specific strength, it is often used as a structural material for buildings. Strength can be increased by rolling, heat treatment, or adding other substances to make an alloy.

• Non-magnetic - Since aluminum is a non-magnetic material (it is not affected by magnetism), it is the best material for places where much delicate equipment is used.

• High durability and reliability - It is highly durable and has a long track record, so it is highly reliable.

• Good earthquake resistance - It has excellent earthquake resistance as well as steel. In addition, it is recyclable and has a good walking feeling.

Use of Aluminum Raised Floor

• Aluminum raised floors are suitable for server rooms, computer rooms, clean rooms, hospitals, electrical rooms, etc.

Click here for a list of aluminum raised floor

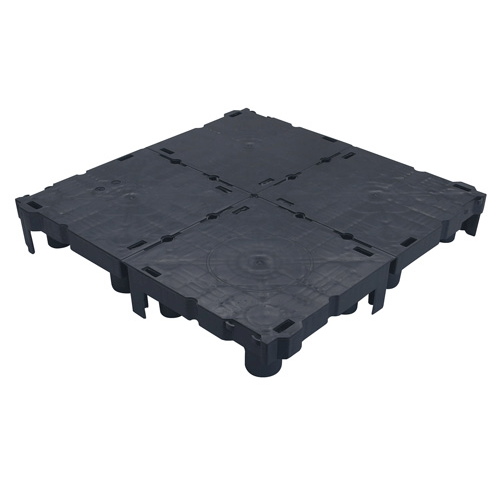

Resin Raised Floor Features & Application

Features of Resin Raised Floor

• Non-land adjustment is not possible - Since the support and panel are integrated, non-land adjustment is not possible. Rattling may occur depending on the floor conditions.

• Lightweight and speedy to install - Since it is a stationary type, construction is quick and easy. Office automation can be done in a minimum of one day.

• Can be installed at low cost - DIY is also possible, and the cost can be significantly reduced.

• Can be cut according to the shape of the room - Since it is made of plastic, it can be easily processed on-site and can be laid in every corner of the room. In addition, the compact 250 mm x 250 mm type has excellent workability.

• Easy to take out wiring - Wiring can be easily taken out by turning the carpet, making it ideal for spaces that require flexible support such as offices.

• Less burden on the building - It is lightweight and just placed, so it has the advantage of less burden on the building.

• Seismic resistance is difficult - Since the support legs are not fixed, seismic resistance is slightly weakened.

Use of Resin OA floor

• Resin raised floors are ideal for general offices, small offices, stores, etc. In addition, since it does not use adhesive, it can be installed in rental offices.

Click here for a list of OA floor products

Raised floors are characterized by their materials, and metal is suitable for large offices and places where large computers are used in terms of strength and durability, but for general offices, it is made of resin. But it shows enough performance. The difference in the price you care about is aluminum, steel, and resin in the order of cost. On AccessFloorStore.Com, you can find the best raised floor system for your project, contact us now for getting professional advice!
