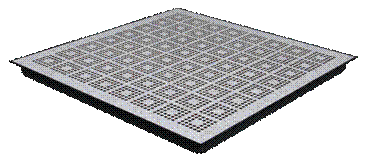

Perforated computer raised flooring

Introduction

perforated computer raised flooring consists of top steel sheet?formed bottom steel sheet and covering(generally Vinyl, High pressure laminate,and rubber flooring, size will be 600×600×35mm. Top steel sheet is welded to formed bottom steel sheet and tiles is stuck to the flat top steel sheet with PVC edging strip glued to each edge of the panel.

Structure

PHYSICAL DATA  Weight of Bare Panel:(14KG) Height of Bare  Panel:(35mm) Fire Rating of Bare Panel:     -Class A Flame Spread -Non-Combustible Materials

perforated computer raised flooring (Conductive Vinyl)

PERFORMANCE DATA Concentrated Load Rating:   (3.59 kN) Uniform Load Rating:   (19.79 kg/m2) Ultimate Load Rating:      (10.79KN) Impact Load Rating:          (79 Kg)  Rolling Load Rating: -CISCA Wheel A (10 Pass):   (2.59 kN) -CISCA Wheel B (10K Pass):  (2.21 kN)

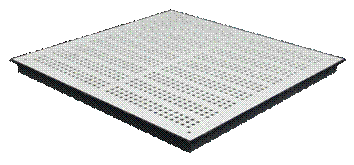

perforated computer raised flooring(HPL)

Features

•perforated computer raised flooring is light weight, less noise and comfortable when walking through.

•High dimension accuracy, smooth floor surface and excellent interchangeability.

•Good loading capacity, strong impact loading capacity and good conductivity.

•Good sealing and water-proof.

•Elaborated made and has a good decorative effect.

Application

perforated computer raised flooring can be installed in telecommunications, electronics, microelectronics, pharmaceutical and other industry program-control rooms, computer rooms, power stations, factory clean rooms and other places that requires anti-static features.
