Particle board carpet finishes raised flooring

Description: The system is based on a 600mm square high performance chipboard panel machined to provide a corner lockdown facility which is achieved using a clamping washer and screw.

Particle board carpet finishes raised flooring consist of high density composite wood core glued to and encased in hot dipped galvanized formed steel sheets. These panels are ULC Listed for flame spread and smoke development and provide excellent rigidity, durability, and acoustic performance. The carpet stick on the top.

Panel Features

• No added urea formaldehyde wood is available.

• High strength to weight performance.

• Full range of factory laminated finishes.

• Finishes available with Integral Trim edge.

• Internally grounded.

• Wide range of understructure support systems available

Panel Specifications

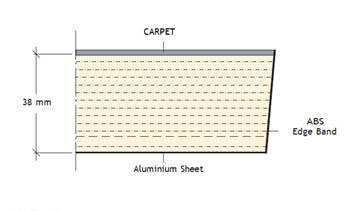

Panel Class : Particle board carpet finishes raised flooring Panel Type: TG / H38 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering: Carpet Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight : ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core: 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values     (according to EN 12825)

Working Load: 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B
