Calcium Sulphate conductive vinyl raised flooring

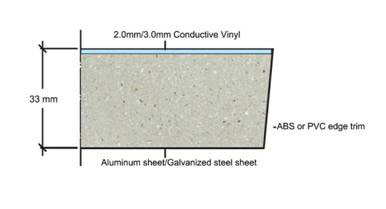

Calcium Sulphate conductive vinyl raised flooring consists of high-strength calcium sulphate(calcium silicate or cement particle board) core.  Conductivevinyl is boned to the top of the core and the bottom of the core is bonded with steel sheet. PVC edging strip is glued to each edge of the panel.

Panel Specifications

Panel Class: Calcium Sulphate conductive vinyl raised flooring Panel Type: TG / H30 Panel Dimensions: 600 x 600 mm Panel Thickness: ~ 32 mm Top Covering : Conductive Vinyl Bottom Covering: Aluminum sheet Edge: ABS edge band Panel Weight: ~ 8,50 kg/panel System Weight: ~ 25,35 kg/m2 (For height 15-20 cm) Panel Core : 30 mm high density chipboard Fire Reaction: Bfl-s1

Panel Load Values (according to EN 12825)

Working Load: 1,5 kN

Maximum Load: > 4,00 kN

Safety Factor: 3

Panel Load Deflection Class : 1B

Applications

With some of the highest load performance grades and an extensive selection of under-structure supports and floor

finishes, these panels are suitable for a wide range of applications:

General Office

• The calcium sulphate core panel’s solid feel is quiet yet economical. An excellent rolling load and Class A flame

spread rating make this a perfect choice for general office use.

Computer Rooms

• In addition to its light weight, a strong ultimate load capacity makes this a favorite for computer rooms.

CS-Series Understructure

• A variety of understructure options ranging from standard Bolt-Tite to Heavy Duty rigid grid system will accommodate

any type of flooring installation. All understructure is manufactured in a ISO9001, ISO4001 facility
