Liquid Cooling Data Center Design: System Work Methods, Components, Benefits
In our digital age, data centers support everything from streaming services to artificial intelligence applications. As AI transforms industries such as healthcare, automotive, and finance, the underlying data centers must handle immense processing power and, consequently, intense heat. Traditional cooling methods are struggling to keep pace with these demands, paving the way for innovative solutions like liquid cooling.
The Challenge: Heat Management in Data Centers
Servers designed for advanced AI workloads and high-performance applications generate enormous amounts of heat. If server temperatures rise too much, their performance drops. Efficient heat management is necessary to maintain reliability and avoid equipment failures. Traditional air-based cooling systems, which use fans and air conditioning to move hot air out and cool air in, are becoming less effective and consume substantial amounts of energy.
What is the Liquid Cooling Data Center?
A liquid cooling data center uses specialized fluid systems instead of relying solely on air to remove heat generated by servers and IT equipment. In these environments, pipes circulate water or unique cooling fluids that absorb heat directly from high-performance hardware. Data centers that support compute- and power-intensive applications—especially AI—depend on servers equipped with high-performance chips that generate enormous amounts of heat. If server temperatures go unchecked, performance drops and equipment reliability is put at risk. Liquid cooling addresses this by efficiently keeping hardware within safe operating ranges, allowing operators to increase rack density and manage ever-growing processing demands.
Why Liquid Cooling System in Data Centers?
Liquid cooling is effective because liquids conduct over 3,000 times as much heat as air, and they do so with less energy. This efficiency allows operators to place more servers into fewer racks, supporting higher-density arrangements while cutting energy use. Traditional air cooling methods just aren’t enough for the latest high-power, data-intensive tasks like AI. Many data centers turn to liquid cooling as a more sustainable, reliable, and scalable option.
In addition, liquid cooling supports energy and water resource optimization. Operators must balance the use of both resources carefully, considering each data center’s location, climate, and infrastructure. The move to liquid cooling is not just about thermal control, it’s also about long-term operational cost reduction, higher efficiency, and supporting sustainability goals.
How Does Liquid Cooling Work in Data Centers?

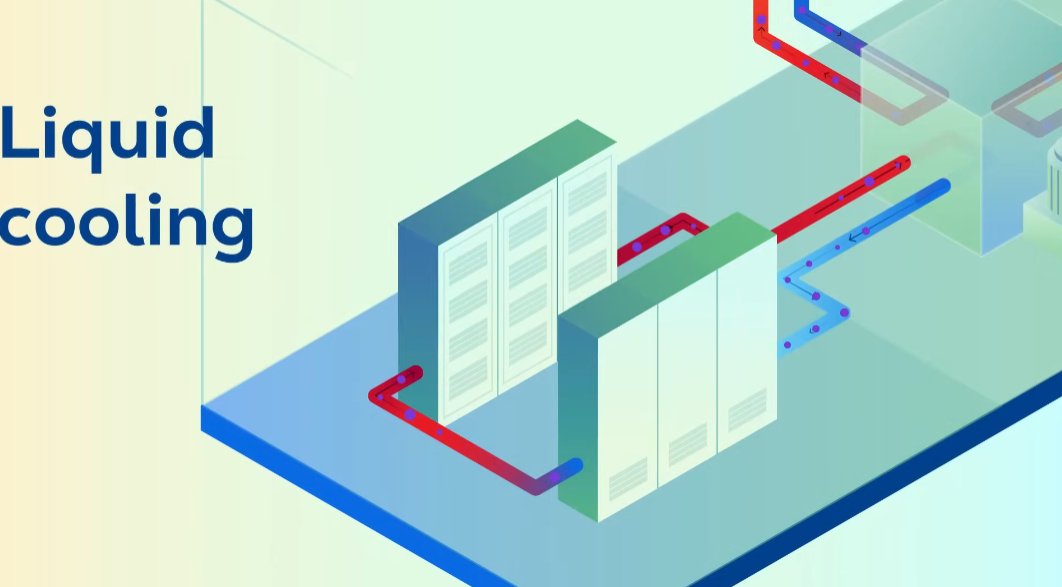

The cooling process starts at the server level. Chilled cooling liquid is housed in a heat exchanger and sent directly to the servers. This fluid flows over metal plates attached to processing chips, pulling heat away at the source. After absorbing heat, the liquid circulates back to the heat exchanger where it is cooled and recirculated. This process continues in a closed loop, maintaining consistent cooling without direct exposure to the IT hardware.
Once the server-level cooling loop transfers heat to the heat exchanger, a secondary building-level cooling system rejects the heat from the facility. Building-level methods vary in their energy and water needs. Air cooling at the building level relies on air conditioning and fans, which use no water but require large amounts of electricity. Evaporative cooling, on the other hand, uses water and fans to convert water to vapor, releasing it outside—this approach can use more water, but tends to be more energy efficient.
Some data centers employ less common methods such as geothermal cooling, which uses cold water from natural sources like lakes to remove heat before returning it. In certain cases, the heat removed from data centers is even repurposed for local community needs.
Liquid Cooling Methods for Data Centers
There are two primary techniques for liquid cooling in data centers:
Direct-to-Chip Cooling
This method uses a closed-loop system to send cooling liquids directly over the processing chips inside servers. The coolant flows over metal plates attached to the processors, pulling heat away at its source. Once the liquid absorbs the heat, it returns to a heat exchanger where it is cooled and recirculated. The process is highly effective for the most heat-intensive components and is especially common in high-power, data-intensive scenarios such as AI workloads.
Immersion Cooling
Immersion cooling submerges entire servers in non-conductive liquids. This approach enables even greater cooling efficiency and lower energy consumption. Immersion cooling is particularly well-suited for environments requiring the highest performance, as it allows for maximum heat transfer from all components.
Both methods have enabled data centers to increase computing density within the same footprint and reduce long-term operational costs.
Data Center Liquid Cooling System Design and Components
Modern liquid-cooled data centers incorporate advanced cabinet and cooling system designs. For instance, high-end cabinets are built with closed-loop airflow systems, featuring solid front and back doors to contain the cooling process. Chilled cooling liquid circulates through massive heat exchangers tied into the building’s infrastructure, such as chilled water systems.
Fans blow cold air down the front of the cabinet, passing through IT equipment and absorbing heat. Hot air is drawn up by extractor fans and pushed through the heat exchangers, where it is cooled and recirculated. The system can dynamically adjust to the IT load, reacting to increased or decreased usage in real time.
Each unit includes redundant heat exchangers for reliability, pressure sensors, and independent control systems. Features like embedded fire suppression and real-time monitoring enhance safety and system management. Quality control and pressure testing are integral to the assembly and deployment process, ensuring equipment safety and reliability.
Main Components
Below are the main components required to build a liquid cooling data center:
Server Cabinets (Enclosures) - Closed-loop cabinets with solid front and back doors, eliminating the need for separate hot and cold aisle containment. Built to contain airflow and maintain temperature control within each rack.
Heat Exchangers - Large, high-capacity units integrated into each cabinet. Responsible for transferring heat from the cooling fluid to the external building cooling system. Often redundant for reliability and tested for pressure integrity.
Coolant Distribution Unit (CDU) - Manages and regulates the flow of coolant to and from the server racks. Maintains proper pressure and monitors coolant temperature throughout the system.
Chilled Water or Coolant Pipes - Network of pipes that circulates water or specialized coolant throughout the facility. Connects heat exchangers, server racks, and the building’s central cooling system.
Direct-to-Chip Cold Plates or Immersion Tanks - Direct-to-Chip Cold Plates: Metal plates attached directly to CPUs, GPUs, and memory modules to extract heat efficiently. Immersion Tanks: Non-conductive fluid baths in which entire servers are submerged for uniform cooling.
High-Powered Fans - Located within the cabinet to direct cold air down the front and move hot air upward. Extractor fans push heated air through heat exchangers for recooling.
Sensors and Control Systems - Pressure, temperature, and flow sensors installed throughout the system. Centralized control boards to monitor real-time status, adjust fan speeds, and manage coolant flow based on equipment load.
Building-Level Cooling Infrastructure - Larger cooling loops that remove rejected heat from the data center, including chillers, evaporative cooling towers, or geothermal systems.
Fire Suppression Systems - Integrated within cabinets and facility to protect equipment in case of emergencies.
Power Distribution and Redundancy - High-voltage power supplies and circuits to support fans, pumps, and control systems. Separate breakers and backup options for uninterrupted operation.
Quality Assurance and Safety Features - Pressure-tested connectors, sealed pans under heat exchangers, and secure hose fittings to prevent leaks. Racks and components certified to meet industry safety standards.
Integration with Building Cooling Systems
After server-level cooling, heat is transferred to the building’s cooling system through heat exchangers. At the building level, there are several options:
Air Cooling: Uses air conditioning and fans to cool liquid and reject heat to the outside air. This method uses a lot of energy but does not consume water.
Evaporative Cooling: Rejects heat with fans and water, converting it to vapor. While more energy-efficient, it consumes more water.
Geothermal Cooling: Circulates cold water from natural sources to remove heat, returning it afterward. This is only feasible in certain locations.
Data center operators select the best combination of server and building-level cooling based on local climate, power constraints, and water availability, aiming for a responsible balance between energy and water usage.
Data Center Liquid Cooling Pros & Cons
Pros
Superior Heat Transfer: Liquids conduct thousands of times more heat than air, allowing for faster and more efficient cooling.
Higher Density: Operators can stack more servers in less space, increasing computing power per rack.
Lower Energy Use: Liquid cooling systems reduce the power needed for cooling, supporting energy efficiency and sustainability.
Quieter Operation: Liquid-cooled systems often operate with much less noise than traditional air-cooled setups.
Supports Sustainability: By lowering power consumption and reducing reliance on water-intensive chillers, liquid cooling supports environmental goals.
Dynamic Control: Modern systems can adjust cooling in real time based on IT load, making them responsive to actual usage.
Cons
Upfront Costs: Initial installation and equipment costs can be higher than air-based systems.
Maintenance Requirements: Specialized knowledge is needed for servicing and maintaining liquid cooling infrastructure.
Risk of Leaks: Robust systems are required to manage the risk of leaks and material compatibility.
Complexity: Liquid cooling introduces new infrastructure and management challenges, particularly during retrofits or upgrades.
Despite these challenges, ongoing innovation is making liquid cooling more accessible and cost-effective. As demand for thermal efficiency and computing density rises, liquid cooling is fast becoming a cornerstone of modern data center design.
