Application of Concrete Raised Floor In Outdoor: Benefits & Installation

Concrete Raised Floor facilitates drainage of rainwater and access to installations under the surface in outdoor areas. The Raised Floor for outdoor was developed for areas exposed to bad weather, such as circulation spaces in common areas of buildings and balconies. The concrete access floor system consists of reinforced concrete panels that serve as a structure for the coating. Stability is guaranteed by rigid pedestals and an exclusive interlocking system.

Advantages (Benefits) of Using Concrete Raised Floor In Outdoor

• Versatile, the concrete raised floor can be used outdoors to ensure thermal protection of the waterproofing layer. This coating is usually applied to the ground floor of buildings, but it can also be installed on balconies and other floors, including the roof.

• As it has no structural function, the raised floor must be installed on a slab with an adequate structure to support the load of the slabs. This type of access floor is suitable for places with pedestrian traffic, not being ideal for the passage of vehicles.

• When used outdoors, the concrete raised access floor has some advantages over the traditional floor (adhered with mortar or floating over a layer of sand). As the joints of the slabs are opened, the raised access floor allows rainwater to be drained quickly and efficiently to the soil, eliminating the use of drains and optimizing the waterproofing process. In addition, it facilitates the maintenance and repair of installations placed under the surface (in the empty space between the boards and the floor).

• Cement-based panel (concrete and structural reinforced, which can be reinforcement material, fibers or reinforcement and mixed fibers) usually measure 60 cm x 60 cm and are 4 cm thick, but can be manufactured in any size or shape.

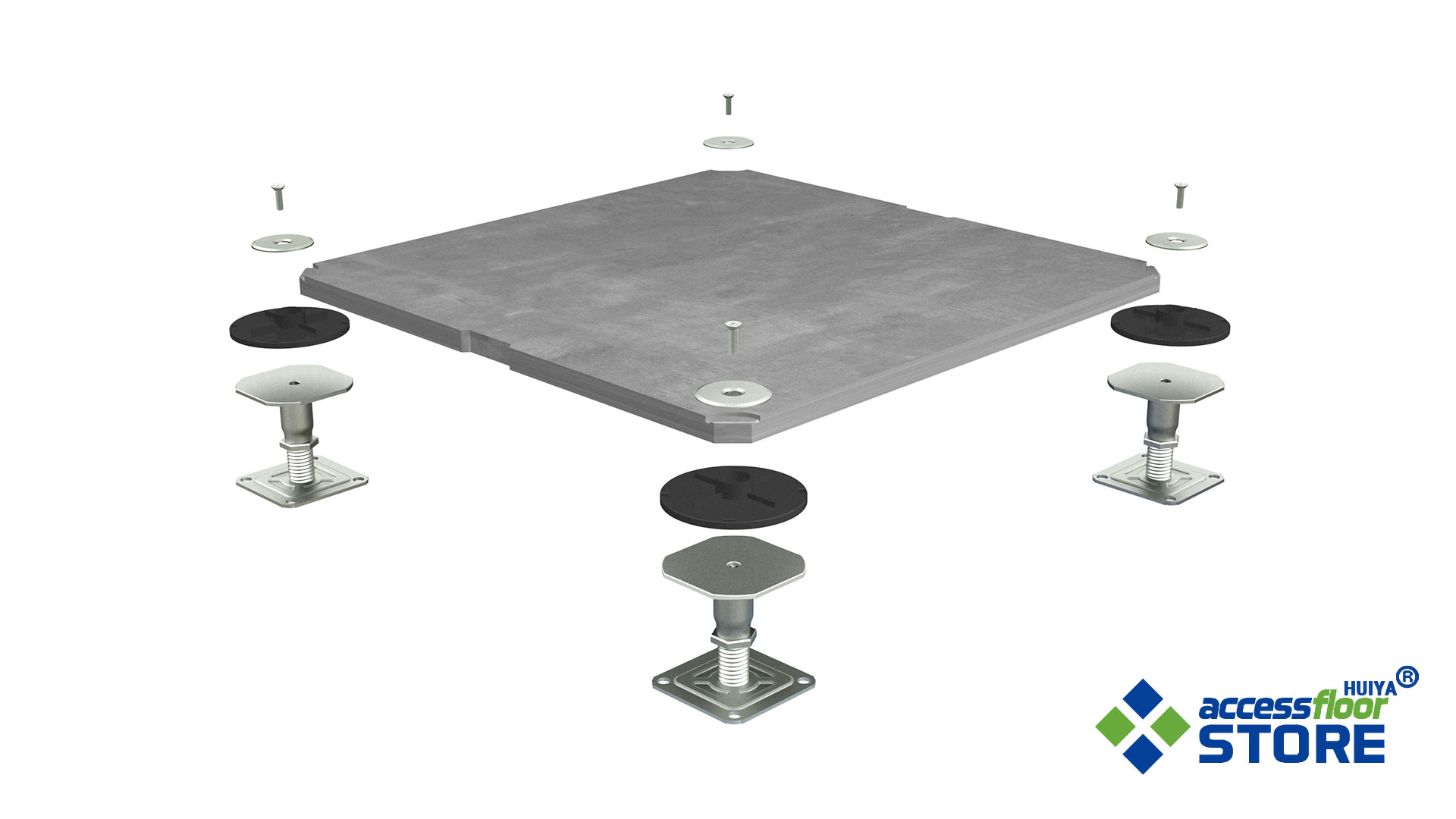

Huiya Concrete Raised Floor Panels

You can get affordable, reliable, and versatile concrete raised floor panels and more raised flooring accessories with certifications and approvals from numerous public institutions and lots of other benefits in accessfloorstore.com. As one of the top cement raised access floor OEM & manufacturer, we are always in the process of development and innovation of cement and concrete raised flooring system products, aiming to become a specialized modern outdoor access floor supplier.

Outdoor Installation of Concrete Raised Access Floor

Care with the specification and installation of the concrete raised floor in outdoor. Three aspects must be considered when specifying:

• 1) The quality of the cementitious panels, which involves the structural issue and durability

• 2) The resistance of the plate support system - called an access floor pedestal, which can be plastic or metal

• 3) Compliance with the performance requirements established by Standard PSA (MOB PF2 PS/SPU), BS EN 12825/ CISCA

As for the installation, our engineer recommends that it be done by specialized labor and that the manufacturer's instructions are followed. Pedestals need to be properly placed and leveled; and the plates must have the spacing locked between them because if the structure is not perfectly locked on the sides, it can lose stability and, consequently, cause accidents. The height between the plates and the substrate must be from 30 cm to 40 cm. But pedestals already exist on the market that allow you to adjust the height according to the need.
